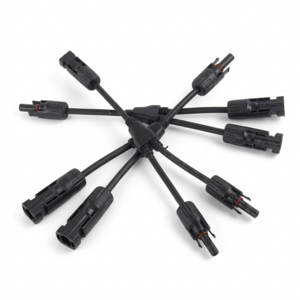

Elmex Y branch Connector

The Elmex Y-Branch Connector set is designed for quick, parallel interconnections of solar modules and panel strings in photovoltaic (PV) power generation systems. Engineered with UV-resistant and flame-retardant engineering thermoplastics, this branch connector set provides an efficient and watertight connection for joining two DC inputs into a single output without needing custom junction boxes or extra wiring.

• High Electrical Performance: Engineered to handle rated voltages up to 1000V DC / 1500V DC and currents up to 30A–50A (model dependent), optimizing energy output across array strings.
• Low Contact Resistance: Features high-grade tinned copper contacts designed for maximum conductivity, minimal thermal loss, and long-term connection stability.
• Weatherproof & Durable: Built with high-grade IP67/IP68 weather sealing to protect against moisture, dust, salt mist, and extreme outdoor temperatures ranging from -40°C to +85°C.
• Secure Snap-In Locking Mechanism: Equipped with an integrated tool-locked safety clip system to prevent accidental disconnections under electrical load, meeting international PV safety standards.
• Wide Cable Compatibility: Designed to interface seamlessly with standard 2.5 mm², 4.0 mm², and 6.0 mm² PV solar cables and standard MC4-compatible male and female connectors.

Technical Specifications

• Brand: Elmex
• Connector Type: Y-Branch / 2-in-1 Parallel Solar Connector Pair
• Configuration: 2 Male to 1 Female / 2 Female to 1 Male Set
• Rated Voltage: Up to 1000V DC / 1500V DC
• Rated Current: 30A–50A
• Ingress Protection: IP67 / IP68 (Mated)
• Flame Class: UL94-V0
• Contact Material: Copper with Tin Plating
• Operating Temperature: -40°C to +85°C
